Line Discipline - ENQ/Acknowledgement - Poll/select

Line Discipline is a functionality of the Data link layer that provides the coordination among the link systems. It determines which device can send, and when it can send the data.  Line discipline method confirms existence and capability of receiver before data is sent by sender.

Line discipline function looks after establishment of link between sender and receiver and takes care of right of particular device to transmit data at a given time.

Line Discipline can be achieved in two ways:

  • ENQ/ACK (Enquiry/Acknowledgement )
  • Poll/select

1. Enquiry/Acknowledgement (ENQ/ACK) :

  • This method is used when there is dedicated link between sender and receiver.
  • This method is used in peer-to-peer communication.
  • It coordinates which device may start transmission and whether receiver is ready to accept data or not.

Working of ENQ/ACK

The transmitter transmits the frame called an Enquiry (ENQ) asking whether the receiver is available to receive the data or not.

The receiver responses either with the positive acknowledgement(ACK) or with the negative acknowledgement(NACK) where positive acknowledgement means that the receiver is ready to receive the transmission and negative acknowledgement means that the receiver is unable to accept the transmission.

Following are the responses of the receiver:

  • If the response to the ENQ is positive, the sender will transmit its data, and once all of its data has been transmitted, the device finishes its transmission with an EOT (END-of-Transmission) frame.
  • If the response to the ENQ is negative, then the sender disconnects and restarts the transmission at another time.
  • If the response is neither negative nor positive, the sender assumes that the ENQ frame was lost during the transmission and makes three attempts to establish a link before giving up.

2. Poll/Select

The Poll/Select method of line discipline works with those topologies where one device is designated as a primary station, and other devices are secondary stations.

Working of Poll/Select

In this method, a primary device and multiple secondary devices consist of a single transmission line, and all the exchanges are made through the primary device even though the destination is a secondary device.

The primary device has control over the communication link, and the secondary device follows the instructions of the primary device.

The primary device determines which device is allowed to use the communication channel. It is an initiator of the session.

Poll

If the primary device wants to receive the data from the secondary device, it asks the secondary device to send data; this process is known as polling.

Firstly, the primary asks (poll) the first secondary device, if it responds with the NACK (Negative Acknowledgement) means that it has nothing to send. Now, it approaches the second secondary device, it responds with the ACK means that it has the data to send. The secondary device can send more than one frame one after another or sometimes it may be required to send ACK before sending each one, depending on the type of the protocol being used.




Select

If the primary device wants to send some data to the secondary device, then it tells the target secondary to get ready to receive the data, this process is known as selecting.

When the primary device wants to send some data, then it alerts the secondary device for the upcoming transmission by transmitting a Select (SEL) frame, one field of the frame includes the address of the intended secondary device.

The secondary device receives the SEL frame, it sends an acknowledgement that indicates the secondary ready status. If the secondary device is ready to accept the data, then the primary device sends two or more data frames to the intended secondary device.

Once the data has been transmitted, the secondary sends an acknowledgement specifies that the data has been received.




Functions of Data Link Layer

Ø  Data Link Control

Data Link Control is the service provided by the Data Link Layer to provide reliable data transfer over the physical medium.

For example, In the half-duplex transmission mode, one device can only transmit the data at a time. If both the devices at the end of the links transmit the data simultaneously, they will collide and leads to the loss of the information.

The Data link layer provides the coordination among the devices so that no collision occurs.

The Data link layer provides three functions:

  • Line discipline
  • Flow Control
  • Error Control

Tuesday, September 29, 2020

Error Detection

Error detection techniques are responsible for checking whether any error has occurred or not in the frame that has been transmitted via network. It does not take into account the number of error bits and the type of error.

For error detection, the sender needs to send some additional bits along with the data bits. The receiver performs necessary checks based upon the additional redundant bits. If it finds that the data is free from errors, it removes the redundant bits before passing the message to the upper layers.

The most popular Error Detecting Techniques are:

  • Single parity check (Vertical Redundancy Check)
  • Two-dimensional parity check (Longitudinal Redundancy Check)
  • Checksum
  • Cyclic redundancy check

 Single Parity Check

 Single Parity checking is the simple mechanism and inexpensive to detect the errors. In this technique, a redundant bit is also known as a parity bit which is appended at the end of the data unit so that the number of 1s becomes even. Therefore, the total number of transmitted bits would be 9 bits.

 If the number of 1s bits is odd, then parity bit 1 is appended and if the number of 1s bits is even, then parity bit 0 is appended at the end of the data unit. At the receiving end, the parity bit is calculated from the received data bits and compared with the received parity bit. This technique generates the total number of 1s even, so it is known as even-parity checking.


Drawbacks of Single Parity Checking

  • It can only detect single-bit errors which are very rare.

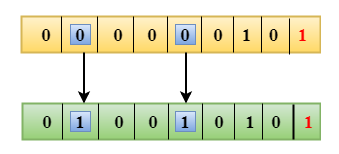

  • If two bits are interchanged, then it cannot detect the errors.

Two-Dimensional Parity Check

Performance can be improved by using Two-Dimensional Parity Check which organizes the data in the form of a table.

Parity check bits are computed for each row, which is equivalent to the single-parity check.

In Two-Dimensional Parity check, a block of bits is divided into rows, and the redundant row of bits is added to the whole block.

At the receiving end, the parity bits are compared with the parity bits computed from the received data.



Drawbacks of 2D Parity Check

 If two bits in one data unit are corrupted and two bits exactly the same position in another data unit is also corrupted, then 2D Parity checker will not be able to detect the error.

Checksums

 This is a block code method where a checksum is created based on the data values in the data blocks to be transmitted using some algorithm and appended to the data. When the receiver gets this data, a new checksum is calculated and compared with the existing checksum. A non-match indicates an error.

 Error Detection by Checksums

For error detection by checksums, data is divided into fixed sized frames or segments.



  • Sender’s End − The sender adds the segments using 1’s complement arithmetic to get the sum. It then complements the sum to get the checksum and sends it along with the data frames.
  • Receiver’s End − The receiver adds the incoming segments along with the checksum using 1’s complement arithmetic to get the sum and then complements it.

If the result is zero, the received frames are accepted; otherwise they are discarded.

 Suppose that the sender wants to send 4 frames each of 8 bits, where the frames are 11001100, 10101010, 11110000 and 11000011.

 The sender adds the bits using 1s complement arithmetic. While adding two numbers using 1s complement arithmetic, if there is a carry over, it is added to the sum.


After adding all the 4 frames, the sender complements the sum to get the checksum, 11010011, and sends it along with the data frames.

The receiver performs 1s complement arithmetic sum of all the frames including the checksum.

The result is complemented and found to be 0. Hence, the receiver assumes that no error has occurred.

Cyclic Redundancy Check (CRC)

Cyclic Redundancy Check (CRC) is a block code invented by W. Wesley Peterson in 1961.

CRC involves binary division of the data bits being sent by a predetermined divisor agreed upon by the communicating system. The divisor is generated using polynomials. So, CRC is also called polynomial code checksum.

Given a k-bit frame or message, the transmitter generates an n-bit sequence, known as a frame check sequence (FCS), so that the resulting frame, consisting of (k+n) bits, is exactly divisible by some predetermined number.

Encoding using CRC

The communicating parties agree upon the size of message block and the CRC divisor. The sender performs binary division of the data segment by the divisor.


Sender then appends the remainder called CRC bits to the end of data segment. This makes the resulting data unit exactly divisible by the divisor.

Decoding

The receiver divides the incoming data unit by the divisor. If there is no remainder, the data unit is assumed to be correct and is accepted.

Otherwise, it is understood that the data is corrupted and is therefore rejected. The receiver may then send an erroneous acknowledgement back to the sender for retransmission.

Suppose the original data is 11100 and divisor is 1001.

CRC Generator

A CRC generator uses a modulo-2 division. Firstly, three zeroes are appended at the end of the data as the length of the divisor is 4 and we know that the length of the string 0s to be appended is always one less than the length of the divisor.

Now, the string becomes 11100000, and the resultant string is divided by the divisor 1001.

The remainder generated from the binary division is known as CRC remainder. The generated value of the CRC remainder is 111. CRC remainder replaces the appended string of 0s at the end of the data unit, and the final string would be 11100111 which is sent across the network.

CRC Checker

The functionality of the CRC checker is similar to the CRC generator.

When the string 11100111 is received at the receiving end, then CRC checker performs the modulo-2 division. A string is divided by the same divisor, i.e., 1001.

In this case, CRC checker generates the remainder of zero. Therefore, the data is accepted.
















Hamming Code

 Hamming Code

Hamming code is a set of error-correction codes that can be used to detect and correct the errors that can occur when the data is moved or stored from the sender to the receiver. It is technique developed by R.W. Hamming for error correction.

Hamming code is a block code that is capable of detecting up to two simultaneous bit errors and correcting single-bit errors.

Error Correction codes are used to detect and correct the errors when data is transmitted from the sender to the receiver.

Error Correction can be handled in two ways:

  • Backward error correction: Once the error is discovered, the receiver requests the sender to re transmit the entire data unit.
  • Forward error correction: In this case, the receiver uses the error-correcting code which automatically corrects the errors.

In this coding method, the source encodes the message by inserting redundant bits within the message. These redundant bits are extra bits that are generated and inserted at specific positions in the message itself to enable error detection and correction. When the destination receives this message, it performs recalculations to detect errors and find the bit position that has error.

Redundant bits are extra binary bits that are generated and added to the information-carrying bits of data transfer to ensure that no bits were lost during the data transfer.

Encoding a message by Hamming Code

The procedure used by the sender to encode the message encompasses the following steps −

  • Step 1 − Calculation of the number of redundant bits.
  • Step 2 − Positioning the redundant bits.
  • Step 3 − Calculating the values of each redundant bit.

Once the redundant bits are embedded within the message, this is sent to the user.

Step 1 − Calculation of the number of redundant bits.

The number of redundant bits can be calculated using the following formula:

 2^r ≥ m + r + 1

 where, r = redundant bit, m = data bit

Suppose the number of data bits is 7, then the number of redundant bits can be calculated using:
= 2^4 ≥ 7 + 4 + 1
Thus, the number of redundant bits= 4.

Step 2 − Positioning the redundant bits.

The r redundant bits placed at bit positions of powers of 2, i.e. 1, 2, 4, 8, 16 etc. They are referred as r1 (at position 1), r2 (at position 2), r3 (at position 4), r4 (at position 8) and so on.

Step 3 − Calculating the values of each redundant bit.

The redundant bits are parity bits. A parity bit is an extra bit that makes the number of 1s either even or odd. The two types of parity are −

  • Even Parity − Here the total number of bits in the message is made even.
  • Odd Parity − Here the total number of bits in the message is made odd.

Each redundant bit, ri, is calculated as the parity, generally even parity, based upon its bit position.

Thus −

  • r1 is the parity bit for all data bits in positions whose binary representation includes a 1 in the least significant position excluding 1 (3, 5, 7, 9, 11 and so on)
  • ris the parity bit for all data bits in positions whose binary representation includes a 1 in the position 2 from right except 2 (3, 6, 7, 10, 11 and so on)
  • r3 is the parity bit for all data bits in positions whose binary representation includes a 1 in the position 3 from right except 4 (5-7, 12-15, 20-23 and so on)

Decoding a message in Hamming Code

Once the receiver gets an incoming message, it performs recalculations to detect errors and correct them. The steps for recalculation are −

  • Step 1 − Calculation of the number of redundant bits.
  • Step 2 − Positioning the redundant bits.
  • Step 3 − Parity checking.
  • Step 4 − Error detection and correction

Step 1 − Calculation of the number of redundant bits

Using the same formula as in encoding, the number of redundant bits is calculated.

2r ≥ m + r + 1 where m is the number of data bits and r is the number of redundant bits.

Step 2 − Positioning the redundant bits

The r redundant bits placed at bit positions of powers of 2, i.e. 1, 2, 4, 8, 16 etc.

Step 3 − Parity checking

Parity bits are calculated based upon the data bits and the redundant bits using the same rule as during generation of c1,c2 ,c3 ,c4 etc. Thus

c1 = parity (1, 3, 5, 7, 9, 11 and so on)

c2 = parity (2, 3, 6, 7, 10, 11 and so on)

c3 = parity (4-7, 12-15, 20-23 and so on)

Step 4 − Error detection and correction

The decimal equivalent of the parity bits binary values is calculated. If it is 0, there is no error. Otherwise, the decimal value gives the bit position which has error.

For example, if c1c2c3c4 = 1001, it implies that the data bit at position 9, decimal equivalent of 1001, has error. The bit is flipped to get the correct message.

Example:

Suppose the data to be transmitted is 1011001.

The number of data bits = 7

The number of redundant bits = 4. Using  2^r ≥ m + r + 1

The total number of bits = 11

The redundant bits are placed at positions corresponding to power of 2- 1, 2, 4, and 8

The data to be transmitted is 1011001, the bits will be placed as follows:

Determining the Parity bits –

1. R1 bit is calculated using parity check at all the bits positions whose binary representation includes a 1 in the least significant position.

R1: bits 1, 3, 5, 7, 9, 11


To find the redundant bit R1, we check for even parity. Since the total number of 1’s in all the bit positions corresponding to R1 is an even number the value of R1 (parity bit’s value) = 0.

2. R2 bit is calculated using parity check at all the bits positions whose binary representation includes a 1 in the second position from the least significant bit.

R2: bits 2,3,6,7,10,11

To find the redundant bit R2, check for even parity. Since the total number of 1’s in all the bit positions corresponding to R2 is odd the value of R2(parity bit’s value)=1

3. R4 bit is calculated using parity check at all the bits positions whose binary representation includes a 1 in the third position from the least significant bit.

R4: bits 4, 5, 6, 7`

To find the redundant bit R4, we check for even parity. Since the total number of 1’s in all the bit positions corresponding to R4 is odd the value of R4(parity bit’s value) = 1

4. R8 bit is calculated using parity check at all the bits positions whose binary representation includes a 1 in the fourth position from the least significant bit.

R8: bit 8,9,10,11


To find the redundant bit R8, we check for even parity. Since the total number of 1’s in all the bit positions corresponding to R8 is an even number the value of R8(parity bit’s value)=0.

Thus, the data transferred is:

Error detection and correction –
Suppose in the above example the 6th bit is changed from 0 to 1 during data transmission, then it gives new parity values in the binary number:

The bits give the binary number as 0110 whose decimal representation is 6. Thus, the bit 6 contains an error. To correct the error the 6th bit is changed from 1 to 0.

Advantages of Hamming code

  • Hamming code method is effective on networks where the data streams are given for the single-bit errors.
  • Hamming code not only provides the detection of a bit error but also helps you to indent bit containing error so that it can be corrected.
  • The ease of use of hamming codes makes it best them suitable for use in computer memory and single-error correction.

Disadvantages of Hamming code

  • Hamming code algorithm can solve only single bits issues.


















Thursday, September 24, 2020

Error Detection - Types of errors

Error Detection

When data is transmitted from one device to another device, the system does not guarantee whether the data received by the device is identical to the data transmitted by another device. An Error is a situation when the message received at the receiver end is not identical to the message transmitted.

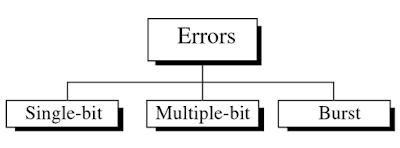

Types Of Errors


Single-Bit Error:

 The only one bit of a given data unit is changed from 1 to 0 or from 0 to 1. Single bit errors are the least likely type of errors in serial data transmission because the noise must have a very short duration which is very rare. However this kind of errors can happen in parallel transmission.


Brust Error:

 The term burst error means that two or more bits in the data unit have changed from 1 to 0 or from 0 to 1.

Burst errors does not necessarily mean that the errors occur in consecutive bits, the length of the burst is measured from the first corrupted bit to the last corrupted bit. Some bits in between may not have been corrupted.

Burst error is most likely to happen in serial transmission since the duration of noise is normally longer than the duration of a bit.

 The number of bits affected depends on the data rate and duration of noise.










Thursday, September 17, 2020

Multiplexing

Multiplexing is a technique used to combine and send the multiple data streams over a single medium. The process of combining the data streams is known as multiplexing and hardware used for multiplexing is known as a multiplexer.

Multiplexing is achieved by using a device called Multiplexer (MUX) that combines n input lines to generate a single output line. Multiplexing follows many-to-one, i.e., n input lines and one output line.

Demultiplexing is achieved by using a device called Demultiplexer (DEMUX) available at the receiving end. DEMUX separates a signal into its component signals (one input and n outputs).

The transmission medium is used to send the signal from sender to receiver. The medium can only have one signal at a time. If there are multiple signals to share one medium, then the medium must be divided in such a way that each signal is given some portion of the available bandwidth.

For example: If there are 10 signals and bandwidth of medium is 100 units, then the 10 unit is shared by each signal.

When multiple signals share the common medium, there is a possibility of collision. Multiplexing concept is used to avoid such collision.

Types of Multiplexing


Frequency Division Multiplexing (FDM) –

Frequency spectrum is divided among the logical channels and each user has exclusive access to his channel. It sends signals in several distinct frequency ranges and carries multiple video channels on a single cable. Each signal is modulated onto a different carrier frequency and carrier frequencies are separated by guard bands.




Bandwidth of the transmission medium exceeds required bandwidth of all the signals. Usually for frequency division multiplexing analog signalling is used in order to transmit the signals, i.e. more susceptible to noise.

A multiplexer accepts inputs and assigns frequencies to each device. The multiplexer is attached to the high speed communication line. A corresponding multiplexer or de-multiplexer is on the end of the high speed line and separates the multiplexed signals. The frequency spectrum is divided up among the logical channels where each user hangs onto a particular frequency. The radio spectrum are examples of the media and the mechanism for extracting information from the medium.



Disadvantage of FDM:
One problem with FDM is that it cannot utilize the full capacity of the cable. It is important that the frequency bands do not overlap. Indeed, there must be a considerable gap between the frequency bands in order to ensure that signals from one band do not effect signals in another band.


Time Division Multiplexing (TDM)

Each user periodically gets the entire bandwidth for a small burst of time, i.e. entire channel is dedicated to one user but only for a short period of time. It is very extensively used in computer communication and tele-communication. Sharing of the channel is accomplished by dividing available transmission time on a medium among users. It exclusively uses the Digital Signaling instead of dividing the cable into frequency bands.

TDM splits cable usage into time slots. Data rate of transmission media exceeds dats rate of signals. Uses a frame and one slot for each slice of time and the time slots are transmitted whether source has data or not.



There are two types of TDMs which are as follows:

1. Synchronous Time Division Multiplexing:

It is synchronous because the multiplexer and the de-multiplexer has to agree about the time slots. The original time division multiplexing. The multiplexer accepts input from attached devices in a round robin fashion and transit the data in a never ending pattern. Each input connection has an allotment even if it is not sending data.


Some common examples of this are T-1 and ISDN telephone lines.

One problem with TDM is to handle different data rates. Three techniques or combination are used to handle
a. Multilevel Multiplexing
b. Multiple-slot Multiplexing
c. Pulse stuffing.

Multilevel Multiplexing:

In this technique different data rates are handled by combining two or more input links into one link as shown in below figure.
Multiple-slot Multiplexing:

In this technique one data rate signal is split into two or more links as shown in below figure.

Pulse stuffing:

In this technique if a link has less data rate then pulse stuffing is done to make the data rate equal to other links as shown in the figure below.



2. Statistical Time Division Multiplexing:

Time-division but on demand rather than fixed, a slot is given in the output frame only if three input line has a slot's worth of data to send. It allows connection of more nodes to the circuit than the capacity of the circuit. Works on the premise that not all the nodes will transmit at full capacity at all times.

    It must transmit a terminal identification i.e destination identification number, and may require storage. A statistical multiplexer transmits only the data from active workstations. If a workstation is not active, no space is wasted on the multiplexed stream. It accepts the incoming data streams and creates a frame containing only the data to be transmitted.

In statistical division multiplexing a slot needs to carry data as well as the address of destination.

Time Slot comparison of Syn TDM and Stat TDM
